| Brand | ASRock |
|---|---|
| Best Seller Ranking | 'specs bestsellingranking click')" class="link-text">Mini-PC Barebone, }, #22 in <a href=https://www.newegg.com/d/Best-Sellers/Mini-PC-Barebone/s/ID-309 onclick="Biz.Common.SiteCatalyst.sendForOnClick({events: 'event63', eVar78: 'product-best seller ranking:Mini-PC Barebone', eVar79: 'product-best seller ranking:Mini-PC Barebone' |
| Series | DeskMini B760 Series |
| Model | DESKMINI B760W |
| CPU ItemType | 13th & 12th Gen Intel Core Processors (LGA1700), Max. TDP 65W, Supports 14th |
| CPU Socket | Intel Socket LGA1700 |
| North Bridge | Intel B760 |
| Memory installed | No Memory |
| Memory slot | 2 x 260Pin SO-DIMM |
| Memory ItemType Supported | DDR4 3200 |
| Max Memory Supported | 64GB |
| Hard Drive Installed | No Hard Drive |
| Serial ATA | 2 x SATA3 6Gb 2.5-inch 7mm/9.5mm Hard Drive (RAID 0/1)* *Supports Intel Volume Management Device (VMD) |
| M.2 | 1 x Blazing M.2 Socket (M2_1), support ItemType 2280 PCIe Gen5x4 (128 Gb/s) mode* 1 x Hyper M.2 Socket (M2_2), supports ItemType 2230 Wi-Fi/BT module and Intel CNVi (Integrated Wi-Fi/BT) *Supports NVMe SSD as boot disks, supports ItemType 2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x M.2 Socket (Key E) |
| SATA RAID | 1, RAID 0 |
| Onboard Audio | Realtek ALC269 Audio Codec |
| LAN | 2.5 Gigabit LAN (Dragon RTL8125BG) |
| Max LAN Speed | 10/100/1000/2500Mbps |
| Front USB | 1 x USB 3.2 Gen2x2 ItemType-C Port (20 Gb/s) (Supports ESD Protection) 1 x USB 3.2 Gen2 ItemType-A Port (10 Gb/s) (Supports ESD Protection) |
| Front Audio Ports | 1 x MIC-In 1 x Head Phone with MIC Jack |
| VGA | 1 x D-sub |
| HDMI | 1 |
| DisplayPort | 1 x DisplayPort 1.4 |
| Rear USB | 1 x USB 3.2 Gen2 ItemType-C Port (10 Gb/s) (Supports USB ItemType-C Alt Mode) 2 x USB 3.2 Gen1 ItemType-A Ports (Supports ESD Protection) 2 x USB 2.0 Ports (Supports ESD Protection) |
| RJ45 | 1 x RJ-45 LAN Port with LED |
| Other Rear Ports | 1 x DC-In Jack (Compatible with the 19V power adapter) |
| Internal Connectors | 1 x USB 2.0 Header 1 x Front Panel Header 2 x 4-Pin fan connectors (CPU, SYS) 1 x Internal Speaker Header (4-Pin) 1 x Audio Header (4-Pin) |
| Dimensions | 155 x 155 x 80 mm (1.92L) |
| Packaging | 2 x SATA Data with Power Cable 1 x 120W/19V adapter 1 x Screws Pack |
| Date First Available | 12-Jun-24 |

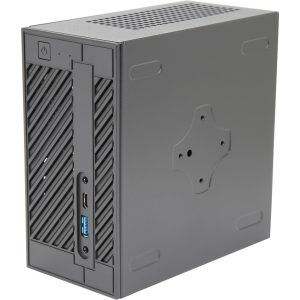

Asrock DeskMini B760 Series Black Mini PC Barebone System,Supports 14th, 13th & 12th Gen Intel ,Multi Video Output, 155 x 155 x 80 mm (1.92L)
Supports 14th, 13th & 12th Gen Intel Core™ Processors (LGA1700), up to 65W
Dual DDR4-3200MHz SO-DIMMs, up to 64GB
Multi Video Outputs:1 x DisplayPort, HDMI & D-Sub
1 x USB 3.2 Gen2x2 Type-C port (20 Gb/s)
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (with USB Type-C Alt Mode)
1 x USB 3.2 Gen2 Type-A port (10 Gb/s)
1 x Blazing M.2 (PCIe Gen5 x4) Slot
1 x Hyper M.2 (PCIe Gen4 x4) Slot
2 x 2.5″ HDD/SSD with RAID 0/1
1 x M.2 Key-E for Wi-Fi
Related products

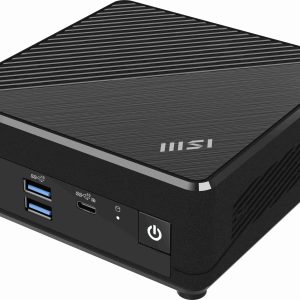

Barebone Mini PC
