| Brand | ASRock |
|---|---|
| Best Seller Ranking | 'specs bestsellingranking click')" class="link-text">Mini-PC Barebone, }, #97 in <a href=https://www.newegg.com/d/Best-Sellers/Mini-PC-Barebone/s/ID-309 onclick="Biz.Common.SiteCatalyst.sendForOnClick({events: 'event63', eVar78: 'product-best seller ranking:Mini-PC Barebone', eVar79: 'product-best seller ranking:Mini-PC Barebone' |
| Model | DESKMINI 310W |
| CPU ItemType | Supports Intel 9th/8th Gen LGA1151 Processors (Max. TDP 65W) * Not backward compatible with older generation of LGA 1151 CPUs |
| CPU Socket | Intel Socket LGA1151 |
| North Bridge | Intel H310 |
| Memory installed | No Memory |
| Memory slot | 2 x 260Pin SO-DIMM |
| Memory ItemType Supported | DDR4 2666 |
| Max Memory Supported | 32GB |
| Other | 1 x M.2 (key E 2230) Slot for Wi-Fi + BT Module Support Intel CNVi module, PCIe |
| Hard Drive Installed | No Hard Drive |
| Serial ATA | 2 x SATA 6.0Gb/s |
| M.2 | M.2_1: ItemType 2280 PCIe Gen3 x4 & SATA 6Gb |
| Onboard Video | Integrated Intel UHD Graphics |
| Onboard Audio | Realtek ALC233 |
| LAN | Intel i219V |
| Max LAN Speed | 10/100/1000Mbps |
| Wireless LAN | Intel AC-3168 |
| Bluetooth | Yes |
| 2.5" Internal Bays | 2 x SATA 6Gb 2.5-inch 7mm/9.5mm Hard Drive |
| Front USB | 1 x USB 3.1 Gen1 ItemType-C 1 x USB 3.1 Gen1 ItemType-A |
| Front Audio Ports | 1 x Head Phone with Mic Jack 1 x Mic-In |
| Card Reader | 1 x Micro SD Card Reader (bottom side) |
| VGA | 1 x VGA * Three graphics output options: HDMI, DP, VGA and supports up to 2 displays simultaneously. |
| HDMI | 1 |
| DisplayPort | 1 x DisplayPort |
| Rear USB | 1 x USB 2.0 ItemType-A 1 x USB 3.1 Gen1 ItemType-A |
| RJ45 | 1 |
| Power Supply | 120W / 19V Power adapter |
| Dimensions | 3.15" x 6.10" x 6.10" |
| Features | HDMI & D-Sub 2 x 2.5" HDD/SSD Tray 1 x M.2 (2230) Wi-Fi Slot USB 3.1 Gen1 ItemType-C port Micro SD Card Reader, Supports Intel 9th/8th Core / Pentium / Celeron LGA1151 processors Dual DDR4 SO-DIMMs, up to 32GB Triple Video outputs: DisplayPort |
| Packaging | Accessory: – 2 x SATA Data with Power Cable – 1 x Screws Pack – 1 x Intel AC-3168 Wi-Fi Kit |
| Date First Available | 15-Feb-19 |
Mini / Booksize Barebone System
Supports Intel 9th & 8th Processors (Socket 1151) (Max. TDP 65W)
2 x 260Pin SO-DIMM DDR4 2666, up to 32GB
Triple Video outputs: DisplayPort, HDMI & D-Sub
1 x M.2 PCIe Gen3 x4 Slot
2 x 2.5″ HDD/SSD Tray
1 x M.2 (2230) Wi-Fi Slot
USB 3.1 Gen1 Type-C port
Micro SD Card Reader
Related products

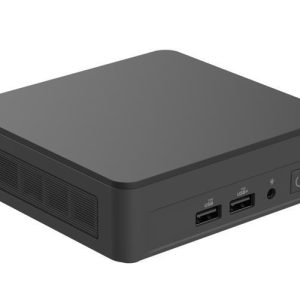

ASUS NUC 13 PRO RNUC13ANKI30000UI Black Barebone Slim Kit (with Intel® Core™ i3-1315U , Single Unit – Memory and Storage Sold Separately )
Price range: $344.99 through $609.99
This item is barebone only. Customer need to purchase Laptop Memory, SSD and Operation System (optional) to combine a completed system
2 x 260Pin SO-DIMM DDR4 3200
• Performance: Powered by a 13th Gen Intel® Core™ i3-1315U processor with integrated Intel® UHD Graphics
• Connectivity: Wired and wireless connections are lightning fast with the onboard 2.5Gbps Intel® Ethernet port, Bluetooth, and Intel® Wi-Fi 6E (Gig+)
• Multi-Monitor Support: Connect up to one 8K or quad 4K@60Hz displays with dual HDMI and dual DP via Thunderbolt™ 4 Type-C ports for a variety of digital signage and display usagesBarebone
Price range: $534.99 through $693.99

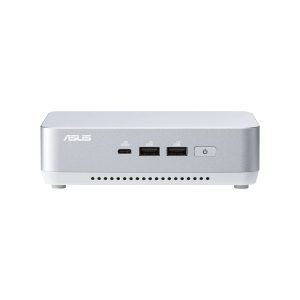

Powerful performance with the latest 14th Gen Intel Core Ultra 7 155H processor and integrated Intel Arc Graphics
Dual channel memory supports up to 96GB of ultra-fast DDR5 5600 MHz RAM
Triple storage design provides ample storage for two M.2 PCIe Gen4x4 SSDs and one 2.5-inch HDD
Integrated Wi-Fi 7 enables high-end wireless connectivity, performing faster and more efficiently than previous generations
Dual LAN design provides increased bandwidth, improves network performance, and enhances data transfer reliabilityBarebone
Price range: $599.99 through $834.99
Intel Core Ultra 7 155H
Intel Arc Graphics

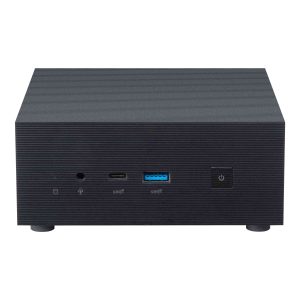

2 x 262Pin SO-DIMM DDR5 5600ASUS Non-logo PN63-S1 Mini PC Barebone with Intel Core i7-1165G7, up to 64GB DDR4 RAM, two M.2 SSD plus one 2.5-inch HDD, WiFi 6E, Bluetooth, USB-C with VESA Mount
